Home>ABC Cable>BS ABC Cable

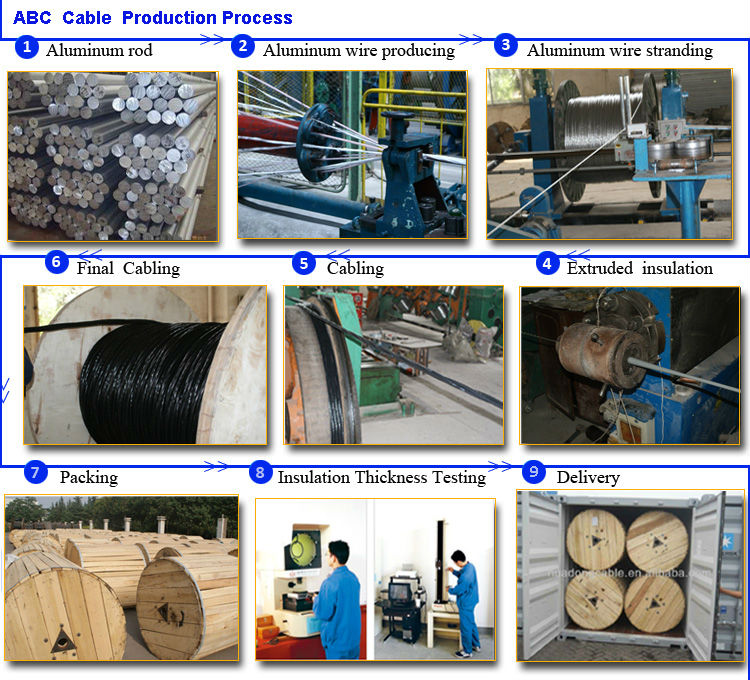

Polyethylene Covered Line Wire 1 core.
Overhead Distribution Cables
STANDARDS

National : ICEA S-70-547
DESCRIPTION
ZZHL Single Conductor Polyethylene-Covered Line Wire is rated for a 75°C normal conductor temperature, and is intended for use in overhead distribution circuits operating at primary or secondary voltages. The covering provides circuit protection against momentary contact with other conductors or trees. Because the covering carries no voltage rating, the conductors must be installed on insulators adequate for the intended service voltage. The user should consider the dielectric compatibility of the covering, insulator and conductor/insulator tie.

Conductor Construction
Conductors are available in the following constructions:
Aluminum conductor, steel reinforced (ACSR), concentric-lay stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay stranded
Medium hard-drawn copper, solid or concentric-lay-stranded

Covering Material
The standard covering on the conductor is black linear low-density polyethylene (LLDPE). Alternatively, a covering of black low-density crosslinked polyethylene (XLPE) with a 90°C temperature rating is available upon request.

The LLDPE and XLPE coverings meet the requirements of ANSI/ICEA S-70-547-2007 (Standard for Weather-Resistant Polyethylene Covered Conductors).

Markings
The covering will bear the following surface markings:

ZZHL
Year and Plant of Manufacture
Conductor Size
Covering Material (LLDPE or XLPE)
standard

ZZHL Overhead Covered Line Wire is manufactured and tested in accordance with ANSI/ICEA S-70-547 (Standard for Weather Resistant Polyethylene Covered Conductors).
LINE WIRE - ACSR CONDUCTOR

Code Word	Size (Stranding)	Covering Thickness (inch)	Cable			DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
Code Word	Size (Stranding)	Covering Thickness (inch)	Overall Diameter (inch)	Weight (lb/kft)	Breaking Strength (lbf)	DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
Walnut	6 (6/1)	0.030	0.26	45	1131	0.658	0.143	95
Butternut	4 (6/1)	0.030	0.31	70	1767	0.413	0.136	120
Pignut	2 (6/1)	0.045	0.41	115	2708	0.260	0.127	165
Chestnut	1 (6/1)	0.045	0.44	140	3373	0.206	0.122	190
Almond	1/0 (6/1)	0.060	0.52	185	4161	0.163	0.116	215
Pecan	2/0 (6/1)	0.060	0.57	225	5035	0.130	0.113	235
Cottonwood	2/0 (6/1)	0.080	0.61	240	5035	0.130	0.113	240
Filbert	3/0 (6/1)	0.060	0.62	275	6289	0.103	0.109	270
Buckeye	4/0 (6/1)	0.060	0.68	340	7933	0.0816	0.105	320
Gumwood	4/0 (6/1)	0.080	0.72	360	7933	0.0816	0.105	325
Hackberry	266.8 (18/1)	0.060	0.73	345	6555	0.0651	0.09	400
Redbud	266.8 (18/1)	0.080	0.77	365	6555	0.0651	0.09	400
Mockernut	336.4 (18/1)	0.060	0.81	425	8265	0.0516	0.087	460
Aspen**	336.4 (18/1)	0.080	0.85	445	8265	0.0516	0.087	465
For XLPE covering, add "XLP" to code word. (eg. Pignut/XLP) * Ampacity based on conductor at 75°C, ambient temperature at 30°C, wind speed at 2 ft/s, with sun. For ampacity values at 90°C, contact our Sales Office. Inductive Reactance values are shown for 1.0 ft equivalent spacing. To correct Inductive Reactance in ohm/kft for other equivalent spacings (S) expressed in feet: XL= Value at 1.0 ft + 0.023 ln(S) For a frequency other than 60 Hz, multiply result by f/60 **This Code Word also refers to another product. To avoid confusion, we recommend specifying the size as well.

LINE WIRE - ALUMINUM 1350 CONDUCTOR

Code Word	Size (# of wires)	Covering Thickness (inch)	Cable			DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
Code Word	Size (# of wires)	Covering Thickness (inch)	Overall Diameter (inch)	Weight (lb/kft)	Breaking Strength (lbf)	DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
Plum	6 (7)	0.030	0.24	35	507	0.661	0.118	95
Apricot	4 (7)	0.030	0.29	50	793	0.415	0.113	130
Peach	2 (7)	0.045	0.38	85	1215	0.261	0.107	170
Nectarine	1 (7)	0.045	0.42	105	1476	0.207	0.105	195
Quince	1/0 (7)	0.060	0.49	135	1791	0.164	0.102	225
Orange	2/0 (7)	0.060	0.54	165	2259	0.130	0.0994	260
Fig	3/0 (7)	0.060	0.59	200	2736	0.103	0.0968	300
Olive	4/0 (7)	0.060	0.64	245	3447	0.0820	0.0941	345
Pomegranate	4/0 (19)	0.060	0.65	245	3618	0.0820	0.0944	345
Mulberry	266.8 (19)	0.060	0.71	305	4473	0.0650	0.0915	410
Basswood	300 (19)	0.060	0.75	335	4932	0.0578	0.0901	430
Annona	336.4 (19)	0.060	0.79	375	5535	0.0516	0.0888	460
Molles	397.5 (19)	0.080	0.89	460	6399	0.0436	0.0869	510
Huckleberry	477 (37)	0.080	0.95	540	7821	0.0364	0.0845	585
For XLPE covering, add "XLP" to code word. (eg. Pomegranate/XLP) * Ampacity based on conductor at 75°C, ambient temperature at 30°C, wind speed at 2 ft/s, with sun. For ampacity values at 90°C, contact our Sales Office. Inductive Reactance values are shown for 1.0 ft equivalent spacing. To correct Inductive Reactance in ohm/kft for other equivalent spacings (S) expressed in feet: XL = Value at 1.0 ft + 0.023ln(S) For a frequency other than 60 Hz, multiply result by f/60

LINE WIRE - COPPER CONDUCTOR

Size (# of wires)	Covering Thickness (inch)	Cable			DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
Size (# of wires)	Covering Thickness (inch)	Overall Diameter (inch)	Weight (lb/kft)	Breaking Strength (lbf)	DC Resistance at 20°C (ohm/kft)	Inductive Reactance (ohm/kft)	Ampacity*
10 (1)	0.030	0.16	35	390	1.03	0.131	55
8 (7)	0.030	0.21	60	646	0.663	0.125	85
6 (7)	0.030	0.24	90	1017	0.417	0.119	110
4 (7)	0.030	0.29	140	1596	0.262	0.114	155
2 (7)	0.045	0.38	225	2489	0.165	0.109	215
1 (7)	0.045	0.42	280	3202	0.131	0.106	245
1/0 (7)	0.060	0.49	360	4009	0.104	0.103	280
2/0 (7)	0.060	0.54	450	5026	0.0822	0.100	325
3/0 (19)	0.060	0.59	560	6308	0.0652	0.0968	380
4/0 (19)	0.060	0.65	700	7904	0.0517	0.0942	440
250 (19)	0.060	0.70	820	9870	0.0438	0.0922	490
350 (19)	0.060	0.80	1140	13015	0.0313	0.0883	610
500 (37)	0.080	0.97	1635	18525	0.0219	0.0839	770
* Ampacity based on conductor at 75°C, ambient temperature at 30°C, wind speed at 2 ft/s, with sun. For ampacity values at 90°C, contact our Sales Office. Inductive Reactance values are shown for 1.0 ft equivalent spacing. To correct Inductive Reactance in ohm/kft for other equivalent spacings (S) expressed in feet: XL = Value at 1.0 ft + 0.023ln(S) For a frequency other than 60 Hz, multiply result by f/60
