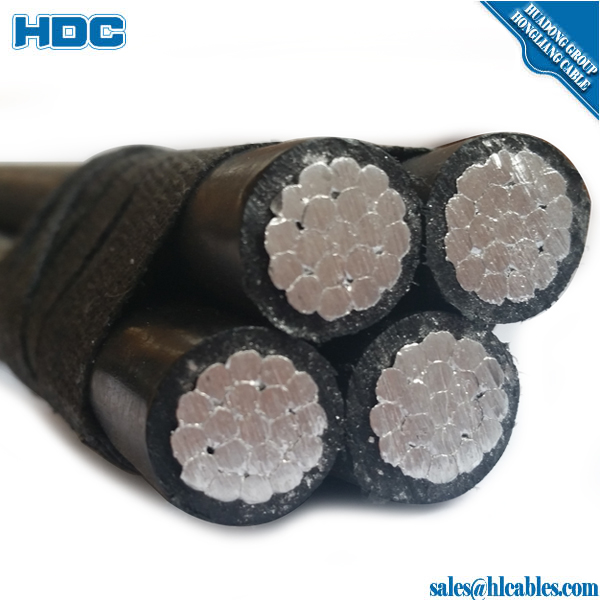

Quadruplex Aluminum Service Drop Cable ACSR Bronco 336.4 336.4 336.4 336.4

Applications:
Used to supply 3 phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Construction:
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Standards:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Additional Information



Code Word Bronco
Phase Conductor Size (AWG) 336.4
Phase Conductor Stranding 19
Phase Conductor Insulation Thickness (mils) 80
Bare Neutral Messenger Size (AWG) 336.4
Bare Neutral Messenger Stranding 18/1
Bare Neutral Messenger Rated Strength (lbs.) 8680
XLP - Weight per 1000' (lbs.) 1568
POLY - Weight per 1000' (lbs.) 1568
Allowable Ampacity (XLP) 370
Allowable Ampactiy (POLY) 280
Type ACSR NEUTRAL-MESSENGER
