Applications:
To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene Insulation or 90°C maximum for crosslinked insulation.
Construction:

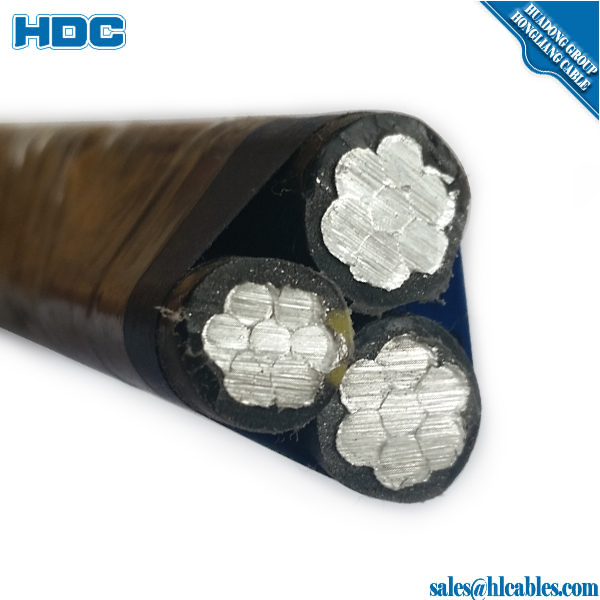

Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR or 6201 alloy neutral messenger.
Standards:
B-230 Aluminum Wire 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474.
Code Word | Cerapus |
---|---|
Phase Conductor Size (AWG) | 4/0 |
Phase Conductor Stranding | 18 |
Phase Conductor Insulation Thickness (mils) | 60 |
Bare Neutral Messenger Size (AWG) | 2/0 |
Bare Neutral Messenger Size (kcmil) | No |
Bare Neutral Messenger Stranding | 6/1 |
Bare Neutral Messenger Rated Strength (lbs.) | 5310 |
XLP - Weight per 1000' (lbs.) | 681 |
POLY - Weight per 1000' (lbs.) | 681 |
Allowable Ampacity (XLP) | 315 |
Allowable Ampactiy (POLY) | 245 |
Type | ACSR REDUCED NEUTRAL-MESSENGER |
Price per foot | Use Our Live Chat |
