ACWU90 cable with its interlocked aluminum armour and PVC jacket is designed for direct burial, exposed wet locations or encased in concrete. The outer PVC jacket on ACWU90 makes this durable and rugged cable assembly approved
for use in hazardous locations.

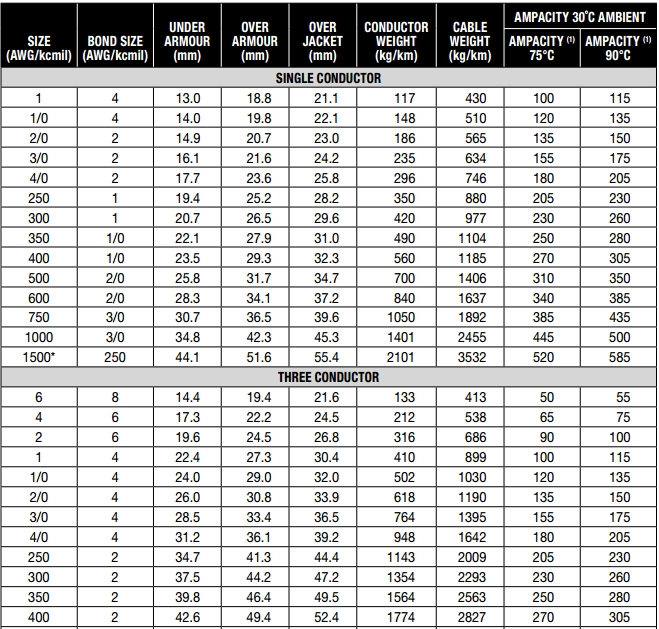

ACWU90 is a factory-produced cable assembly consisting of one to four 90°C rated crosslinked polyethylene insulated conductors and one bare bonding conductor inside a flexible, interlocked aluminum armour. Multi-conductor ACWU90 cables are available in sizes 6 AWG to 1500 kcmil. Single-conductor ACWU90
cables are available in sizes from 1 AWG to 1500 kcmil but are not approved for use in hazardous locations. On single-conductor cables, the bonding conductor is applied concentrically around the phase conductor.
Applications:
• Outdoors (exposed locations)
• In wet locations (Type RW90 conductors)
• Direct buried
• Encased in concrete
• Temporary power
• As aerial cable on a messenger
• Hazardous locations
* Denotes compliance to RoHS Directive 2011/65/EU.
