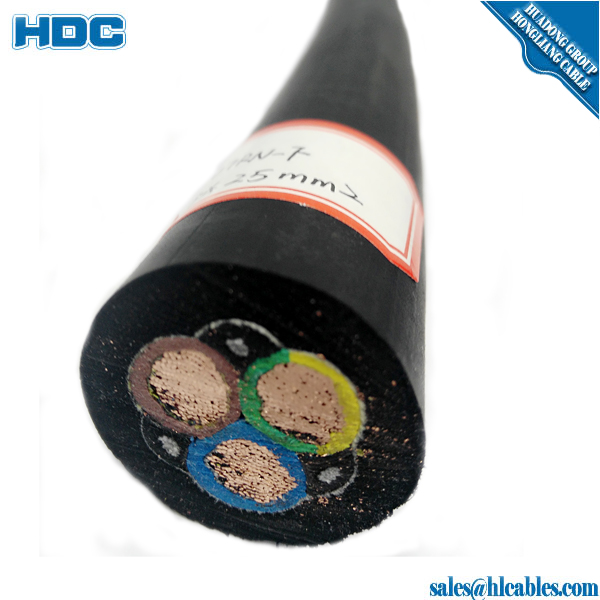

Designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy Duty Harmonised Cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant in accordance with BS6007 Table 4 Cenelec code HO 7RN-F
Standard
Manufactured to Din 57282, VDE 0282, VDE 0165, VDE 0472 and BS6500 ( up to 5 cores ).
Constructure
Conductor: Flexible Class5 Tinned class5 Copper to be BS6360
Insulation: Ethlylene Propylene Rubber (E.P.R). , Type EI 4 to BS 7655
Sheath: PCP Neoprene Rubber Type EM2 to BS 7655
Technical Data
Voltage: 450/750V H-Harmonised Approval
Test voltage:2500V 7-450/750Rated
Operating Temperature range:-20℃+85℃ R-Natural or synthetic Rubber
Bending Radius :15xcable Diameter N-Polychloroprene(PCP Neoprene)
F-Flexible stranded condctor
1 Core: | Black |
2 Core: | Brown, Blue |
3 Core: | Green/yellow, Brown, Blue |
4 Core: | Green/Yellow, Black, Blue, Brown |
5 Core: | Green/Yellow, Black, Blue, Brown, Black |
