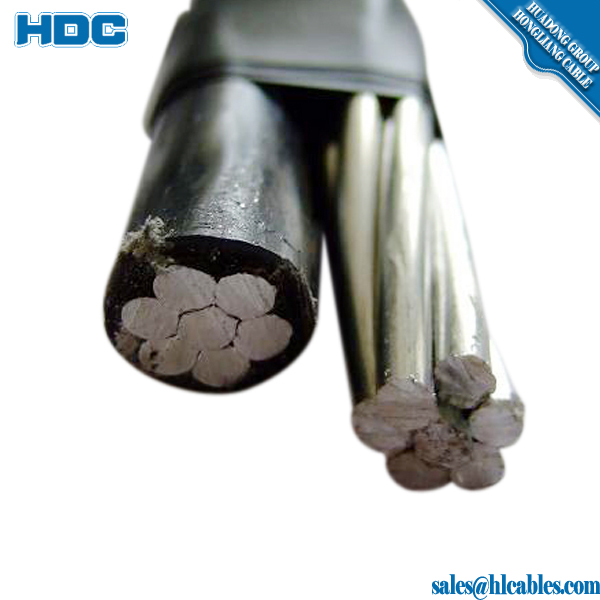

It consists of copper or aluminum conductor; inner shielding layer, weather-proof insulation material and outer shielding layer. It not only has power transmitting character of power cable, but also has a strong mechanical character of aerial cable, as well. In comparasion with bare cable, it boasts many advantages, such as, small span in laying the initiative to choose to use.
|
Type
|
Name
|
Application
|
|
JKTRYJ
|
Soft copper conductor XLPE insulation aerial cable
|
The transformer leads to connect the line
|
|
JK(L)YJ
|
Cu (Al) copper conductor XLPE insulation aerial cable
|
When laying fixed cable, the user must keep certain distance between cable and trees. During power transmission, allow the cable with multifarious contact in tree.
|
|
JK(L)Y
|
Cu (Al) copper conductor HDPE insulation aerial cable
|
|
|
JKLGYJ
|
Steel-Al conductor XLPE insulation aerial cable
|
|
|
JKLGY
|
Steel-Al conductor HDPE insulation aerial cable
|
|
|
JKLYJ/Q
|
Al conductor light XLPE insulation aerial cable
|
When laying fixed cable, the user must keep certain distance between cable and trees. During power transmission, the cable can be allowed with trees just for a short time.
|
|
JKLY/Q
|
Al conductor light HDPE insulation aerial cable
|
|
|
JKLGYJ/Q
|
Steel-Al conductor light XLPE insulation aerial cable
|
|
|
JKLGY/Q
|
Steel-Al conductor light HDPE insulation aerial cable
|
|
Type
|
Core number
|
Nominal cross-section area mm2
|
|
|
1 KV
|
10KV
|
||
|
JK(L)YJ JK(L)Y
JKTRYJ JKTRY
|
1
|
16--240
|
25--300
|
|
3
|
10--120
|
25--300
|
|
|
4
|
10--120
|
|
|
|
JK(L)YJ/Q JK(L)Y/Q
|
1
|
----------
|
25--300
|
|
JKLGYJ JKLGY
|
1
|
25/4---300/40
|
25/4---300/40
|
|
JKLGYJ/Q
|
1
|
---------
|
25/4---300/40
|
