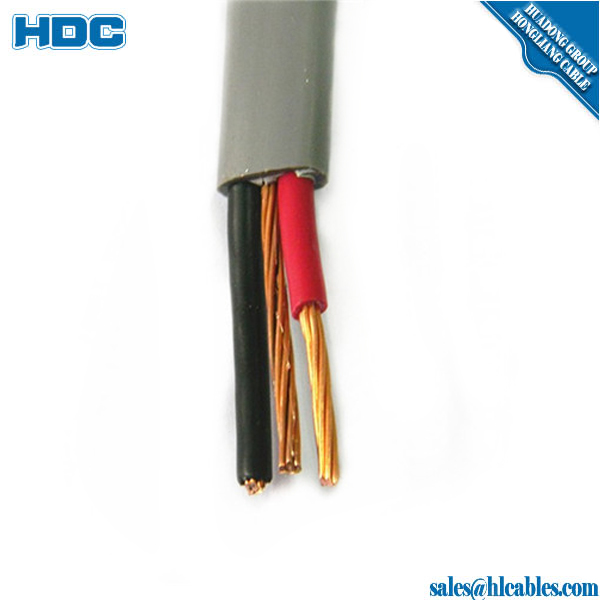

electrical cable Application:
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
electrical cable Technical:
450/750V300/500V300/300V.(600/1000V also available)Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
100mmsq THHN Wire:
|
Nominal |
Conductor |
Nominal |
Max overall |
Condcutor |
Min insulated |
Weight |
|
2.5 |
9/0.41 |
0.8 |
4.2 |
7.41 |
0.011 |
33.0 |
|
4 |
19/0.52 |
0.8 |
4.8 |
4.61 |
0.009 |
48.0 |
|
6 |
19/0.64 |
0.8 |
5.6 |
3.08 |
0.0084 |
68.0 |
|
10 |
49/0.52 |
1.0 |
7.6 |
1.83 |
0.0072 |
115.0 |
|
16 |
49/0.64 |
1.0 |
8.8 |
1.15 |
0.0062 |
176.0 |
|
25 |
98/0.58 |
1.2 |
11.0 |
0.727 |
0.0058 |
272.0 |
|
35 |
133/0.58 |
1.2 |
12.5 |
0.524 |
0.0052 |
384.0 |
|
50 |
133/0.68 |
1.4 |
16.5 |
0.387 |
0.0051 |
510.0 |
|
70 |
189/0.68 |
1.4 |
16.5 |
0.268 |
0.0045 |
714.0 |
|
95 |
259/0.68 |
1. |
19.5 |
0.139 |
0.0035 |
965.0 |
|
120 |
259/0.76 |
1.8 |
22.0 |
0.153 |
0.0032 |
1210.0 |
|
150 |
259/0.85 |
1.8 |
25.0 |
0.124 |
0.0032 |
1510.0 |
