Cable ACSR LINNET kinds:

1)AAAC(All Aluminum Alloy Conductors)

2)ACSR(Aluminum Conductor Steel Reinforced)

3)AAC(All Aluminum Conductors)

4)AACSR(Aluminum Alloy Conductors Steel Reinforced)

5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)

Cable ACSR LINNET :

AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors can be produced fully in accordance with international standard such as  IEC,BS,ASTM,DIN,JIS,NF,CSA,AS/NZS.

Description(Features):
1. Aluminum Conductor.
2. Steel Reinforced.
3. Bare.

Cable ACSR LINNET Applying terms:

Bare Conductor AAC/AAAC/ACSR/ACAR ,
1.The long-time working temperature of cable should not be higher than 250℃.
2.While installation the ambient temperature should not be lower than -20℃.
3.When core is in short circus (max 5s) the temperature should not exceed 250℃ Specifications

a.High tensile strength
b.Long life
c.Light in weight
d.Suitable for high as well as extra high overhead voltage lines

Standard: ASTM B232 ,IEC61089, BS215 part2, DIN48204, BS EN50182, GB/T 1179-2008

Cable ACSR LINNET Brief Description

Bare Conductor AAC/AAAC/ACSR/ACAR ,

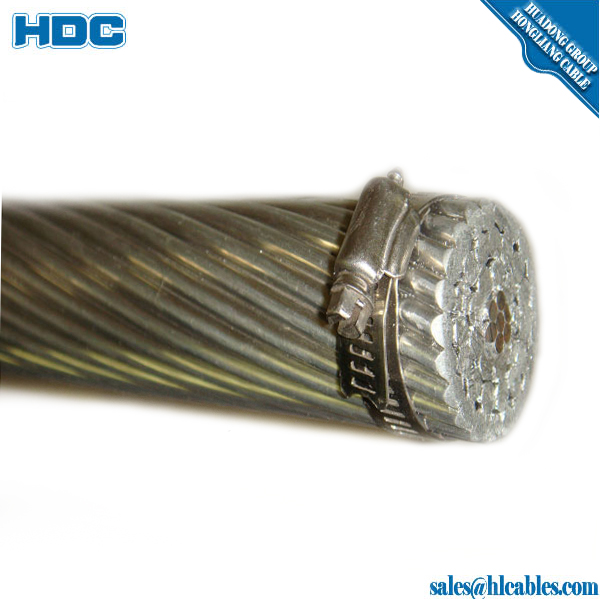

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).
ACSR Conductor may be manufactured for having a wide range of tensile strength as per requirement.
The principal advantage of these conductor  240mm2  ACSR   240mm2  ACSR  s are high tensile strength and light weight with longer spans as well as
with lesser supports. Due to the greater diameter of ACS Conductor a much higher corona limit can be obtained causing
big advantages on high as well as extra high voltage overhead lines.
Cable ACSR LINNET Applications

 Bare Conductor AAC/AAAC/ACSR/ACAR ,
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables
desired strength to be achieved without sacrificing ampacity. ACSR Conductor are used extensively
for overhead ground wires, river crossings etc. These ACSR Conductor are available with us in various types for
meeting the exact requirements of the clients.
Package:In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.Welcome your request for any quotations!
