Construction:

• Conductors: 3 Aluminum Conductors (per ASTM Standards B231, B232, and B399 as applicable)
• Insulation: Black Extruded Cross-linked Polyethylene (XLPE)
• Bare Neutral: Bare Aluminum

Ratings and Approvals:

• ANSI/ICEA Standard S-76-474
• Voltage Rating: 600 Volts
• Temperature Rating: 90°C

Features and Benefits:

• Weather resistant
• Abrasion resistant
• Tearing resistant
• Cutting resistant
• Chemical resistant

Applications:

• Delivers 4-wire three phase power from secondary power line or pole-mounted transformers to service-entrance conductors.
• May be used as pole line secondary with service splices at the pole or mid-span.

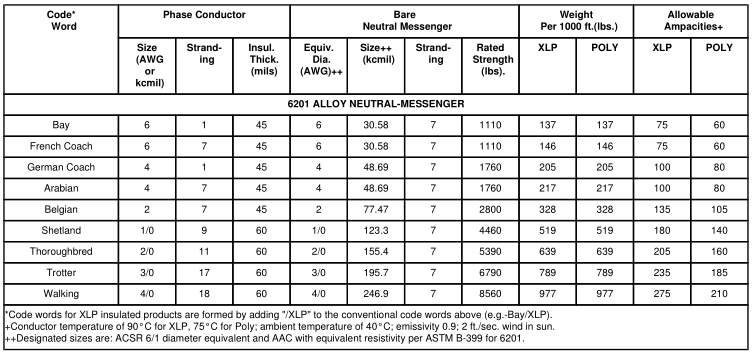

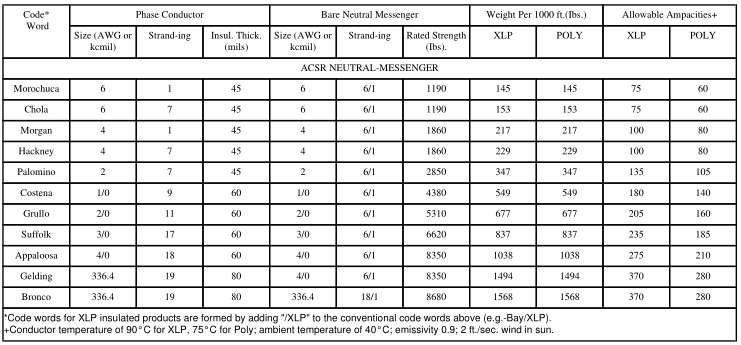

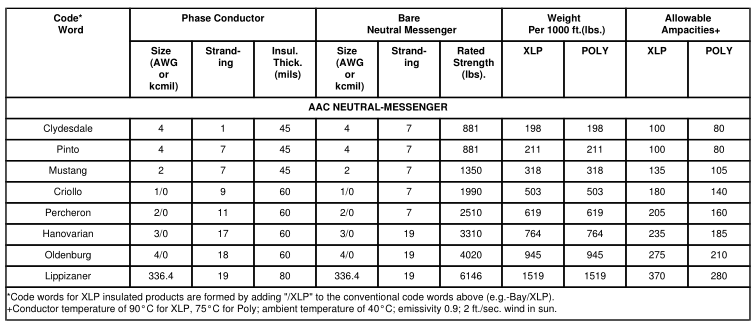

Code name and specification data:
