Application-
Aerial Cable has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as: small span in laying, higher safe reliability, better atmosphere aging resistence property. It has the priority to be used in urban and rural power-transmitting construction project.
Executive standard:
GB12527-90 11Kv Aerial insulation cable (According to IEC502,IEC227 Standard);
Insulation- PVC or XLPE
Working conditions aerial insulation power cable
1) Rated voltage: 11kV
2) The tallest working temperature of the cable conductor; XLPE insulation cable: 90°C;
HDPE insulation cable: 75°C;
3)During having a short (lasting less than 5 seconds) the maximum temperature;
XLPE insulated cables is 250°C;
HDPE insulated cable is 150°C
4)During the cable lying, the ambient temperature must be above-20°C
5) Bending radius allowance of the cable;
A)1Kv aerial insulation power cable:
It should be no less than 4D for the cable with outer diameter less than 25mm;
It should be no less than 6D for the cable with outer diameter of 25mm or more;
B) 10kV aerial insulation power cable:
Single core cable: 20 (D+d)±5%mm;
Multi-core cable:15 (D+d)±%mm
Formula inside: D-Actual cable outer diameter;
d-Actual conductor outer diameterl
Nominal Area(mm²) |
Reference diameter |
Approximate weight(kg/km) |
|||
JKYJ/Q |
JKLYJ/Q |
JKY/Q |
JKLY/Q |
||
25 |
13.0 |
312 |
157 |
313 |
158 |
35 |
14.0 |
411 |
194 |
412 |
195 |
50 |
15.3 |
557 |
247 |
559 |
249 |
70 |
17.0 |
760 |
326 |
761 |
327 |
95 |
18.8 |
1008 |
419 |
1010 |
421 |
120 |
20.2 |
1246 |
502 |
1248 |
504 |
150 |
21.8 |
1530 |
600 |
1532 |
604 |
185 |
23.4 |
1859 |
712 |
1861 |
7156 |
240 |
25.6 |
2373 |
885 |
2375 |
889 |
300 |
27.8 |
2929 |
1069 |
2932 |
1072 |

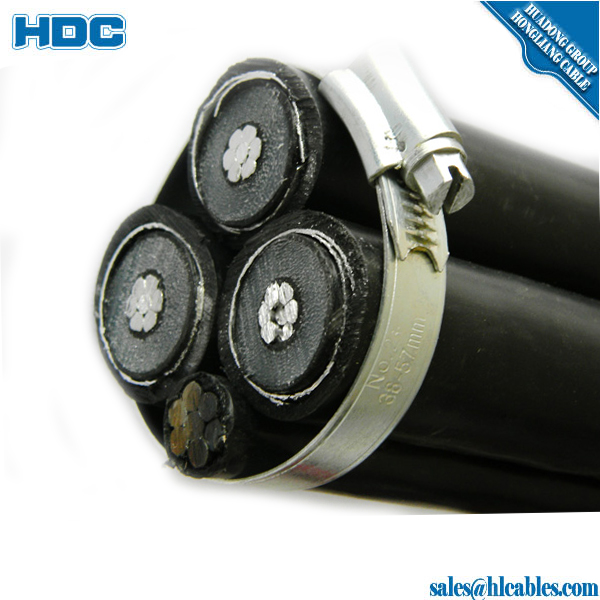

3 core abc cable
Number of Conductor Cross - Section |
Insulated Wires | Messenger | Finished Cable | |||||||||
Distribution Line | Street Lighting |
Diameter of Messenger Wire |
Min. Tensile Strength |
Resistance of 20 ° C |
App. Max Bundle Diameter |
App.Net Weight |
||||||
Number & Cross - Section |
Number of Wires |
Diameter of Wires |
Resistance of 20 ° C |
Current Carrying Capacity 30 ° C |
Number & Cross - Section |
Current Carrying Capacity |
||||||
mm 2 | mm 2 | number | mm | ohm/km | A | mm 2 | A | mm | kN | ohm/km | mm | kg/km |
3x16+25 | 3x16 | 7 | 4.4 | 1.91 | 70 | - | - | 5.9 | 7.4 | 1.38 | 22 | 275 |
3x25+35 | 3x25 | 7 | 5.9 | 1.2 | 90 | - | - | 6.9 | 10.3 | 0.986 | 26 | 400 |
3x25+54.6 | 3x25 | 7 | 5.9 | 1.2 | 112 | - | - | 9.6 | 16 | 0.63 | 30 | 470 |
3x35+54.6 | 3x35 | 7 | 6.9 | 0.868 | 138 | - | - | 9.6 | 16 | 0.63 | 33 | 580 |
3x35+50 | 3x35 | 7 | 6.9 | 0.868 | 115 | - | - | 8.1 | 14.2 | 0.72 | 30 | 575 |
3x50+54.6 | 3x50 | 7 | 8.1 | 0.641 | 168 | - | - | 9.6 | 16 | 0.63 | 36 | 720 |
3x50+70 | 3x50 | 7 | 8.1 | 0.641 | 140 | - | - | 9.6 | 20.6 | 0.493 | 35 | 750 |
3x70+70 | 3x70 | 12 | 9.7 | 0.443 | 213 | - | - | 10.2 | 20.6 | 0.5 | 41 | 970 |
3x70+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | - | - | 9.6 | 16 | 0.63 | 38 | 930 |
3x95+70 | 3x95 | 19 | 11.5 | 0.32 | 258 | - | - | 10.2 | 20.6 | 0.5 | 44 | 1200 |
3x70+95 | 3x70 | 7 | 9.6 | 0.443 | 180 | - | - | 11.4 | 27.9 | 0.363 | 41 | 1050 |
3x120+70 | 3x120 | 19 | 12.8 | 0.253 | 300 | - | - | 10.2 | 20.6 | 0.5 | 46 | 1430 |
3x120+95 | 3x120 | 19 | 12.8 | 0.253 | 250 | - | - | 11.4 | 27.9 | 0.363 | 47 | 1550 |
3x120+95 | 3x120 | 19 | 12.8 | 0.253 | 300 | - | - | 12.9 | 27.9 | 0.343 | 47 | 1500 |
3x150+95 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | - | 12.9 | 27.9 | 0.343 | 49 | 1740 |
3x150+70 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | - | 10.2 | 20.6 | 0.5 | 48 | 1680 |
