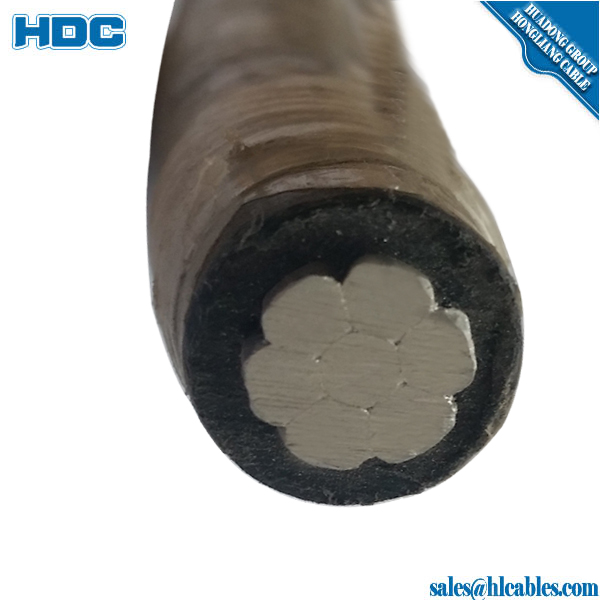

Directly buried or installed in ducts for 600 volt secondary distribution. Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation.
Applications: Directly buried or installed in ducts for 600 volt secondary distribution.
Construction: Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation.
Standards: Secondary UD single conductor 600V cable meets or exceeds the following ASTM specifications. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes. B-231 Aluminum 1350 conductors, Concentric-Lay-Stranded. B-786 "19 Wire combination unilay-stranded Aluminum Conductors for subsequent insulation". B-901 "Compressed round stranded Aluminum Conductors using single input wire construction".
Secondary UD single conductor 600V cable meets or exceeds all applicable requirements of ICEA S-105-692. "USE-2" per UL 854 available upon request.
Additional Information
|
Code Word |
Sewanee |
|
Size (AWG or kcmil) |
750 |
|
Stranding |
61 |
|
Insulation Thickness (mils) |
110 |
|
Diameter - Bare (inches) |
0.968 |
|
Diameter - Complete Cable (inches) |
1.188 |
|
Weight per 1000' (lbs.) |
854 |
|
Allowable Ampacities+ (Direct Burial) |
580 |
|
Allowable Ampacities+ (In Ducts) |
470 |
|
Price per foot |
