1) Standard: IEC61089, BS215-1, ASTM B231, DIN48201



















2) The permissible long-time operating temperature for aerial conduct is 70 °C .

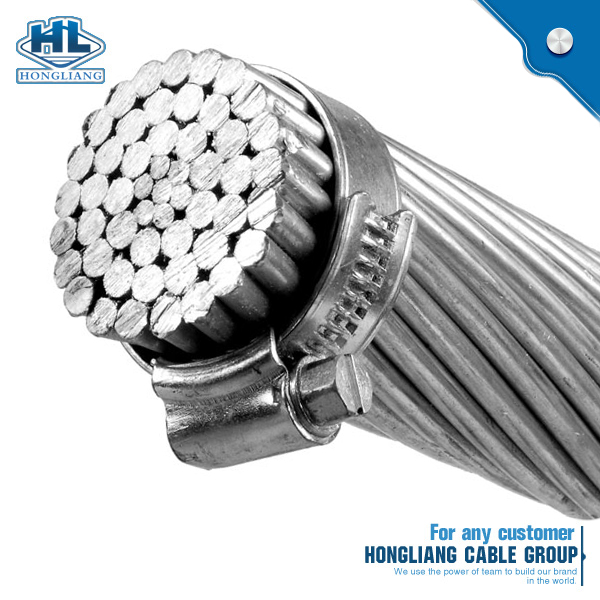

3) Struture: AAC are composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.

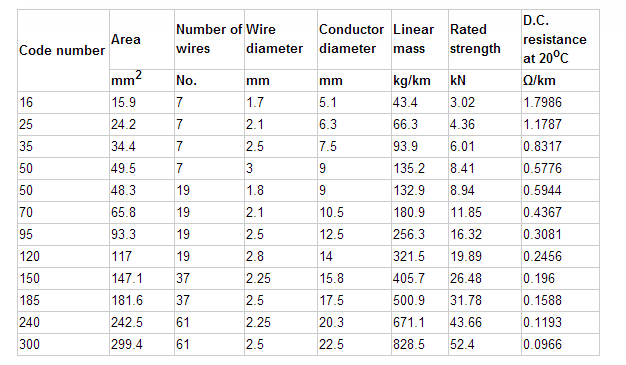

 4) Product Performance: The rated tensile strength of AAC is denoted with the result of total cross-section of all aluminum conductors multiplied by min. tensile of corresponding size specified in the standard for aluminum wire.



5) Features and Benefits: AAC Conductor is widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line and  large transmission capacityare are also suitable for laying across rivers and valleys where special geographical features exist.



 6) Application: AAC are used in overhead electric power transmission and distribution lines with various grade voltage.
